BU33TD2WNVX-TL
Manufacturer:
Rohm Semiconductor
Mfr.Part #:
BU33TD2WNVX-TL
Datasheet:
Description:

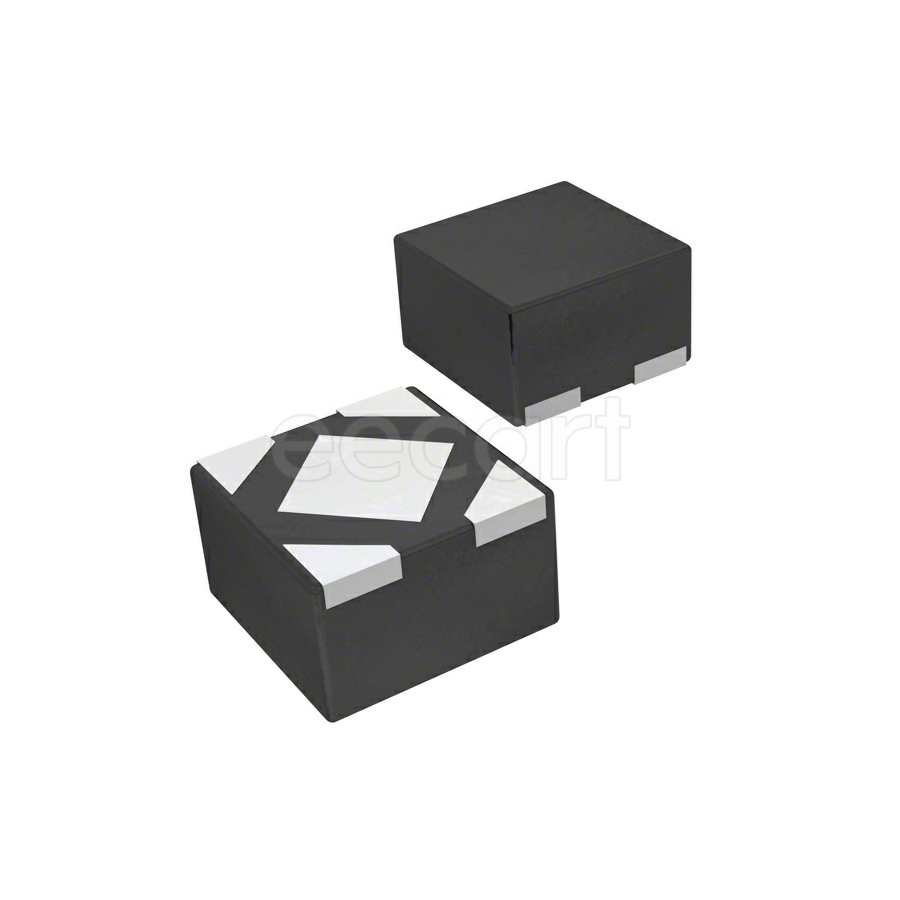

Voltage Regulators - Linear DFN-4 SMD/SMT Positive Fixed 3.3 V 200 mA
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Packaging | Reel |
| RoHS | Compliant |
| Polarity | Positive |
| Dropout Voltage | 220 mV |
| Min Input Voltage | 1.7 V |
| Output Current | 200 mA |
| Output Voltage | 3.3 V |
| Output Type | Fixed |
| Max Power Dissipation | 560 mW |
| Max Output Current | 200 mA |
| Number of Channels | 1 |
| Quiescent Current | 60 µA |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Min Current Limit | 220 mA |
| Watchdog Timer | No Watchdog |
| Number of Regulators | 1 |
| Load Regulation | 10 mV |
| Line Regulation | 2 mV |
Stock: 413
Distributors
pcbx
pcbxUnit Price$0.16627
Ext.Price$0.16627
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16627 | $0.16627 |
| 10 | $0.13200 | $1.32000 |
| 50 | $0.11490 | $5.74500 |
| 100 | $0.10001 | $10.00100 |
| 500 | $0.09176 | $45.88000 |
| 1000 | $0.08672 | $86.72000 |
